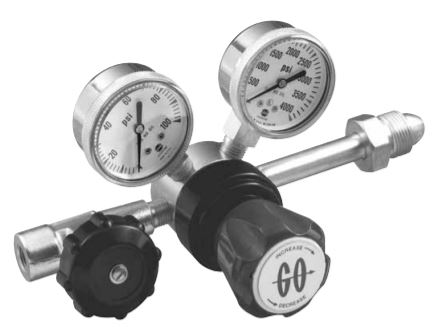

The CYL-1 Series is designed as a complete compact pressure control module.
The basis of this unit is the economical PR-2 Series pressure control valve which is widely used in instrumentation sample systems as well as many other applications requiring maximum reliability.
This regulator, when ordered with appropriate gauges and CGA inlet fitting, is designed for use as a compressed gas cylinder regulator for those applications where the corrosion resistance of stainless steel is not a requirement.
| Body Material | |
|---|---|
| Port Configuration | F |
| Port Type | 1/4" FNPT (1/4" FNPT Gauge ports) |
| Diaphragm Type | 1 Standard diaphragm |
| Seat Material | Tefzel |
| Flow Coefficient (Cv) | |
| Output Range | 0-25 psig(0-1.72 bar) (0-172 kpa) |
| Cap Assembly | 1 Standard |
| CGA Fitting 1st Digit | 0 |
| CGA Fitting 2nd Digit | 0 |
| CGA Fitting 3rd Digit | 0 |
| Gauges | include Gauges |
